Contents
TOP TRAY - EVA100T - EVA Tray 93 Piece EVOLVE® Socket & Accessories 1/4", 3/8" & 1/2" Drive
METRIC SIZES:
• 9 Sockets 1/4" Square Drive:
4, 5, 6, 7, 8, 9, 10, 11, 12mm
• 10 Sockets 3/8" Square Drive:
9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm
• 22 Sockets 1/2" Square Drive:
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 30, 32mm
IMPERIAL SIZES:
• 9 Sockets 1/4" Square Drive:
3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
• 7 Sockets 3/8" Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
• 15 Sockets 1/2" Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1.1/16, 1.1/8, 1.3/16, 1.1/4"
SOCKET ACCESSORIES:
• 1/4" Square Drive:
Ratchet Handle Reversible
Flex Handle 150mm (6")
Extension 50 mm (2")
Extension 150 mm (6")
Universal Joint
Spinner Handle 150mm (6")
• 3/8" Square Drive:
Ratchet Handle Reversible
Flex Handle 200mm (8")
Extension 75mm (3")
Extension 150mm (6")
Universal Joint
• 1/2" Square Drive:
Ratchet Handle Reversible
Flex Handle 250mm (10")
Extension 125mm (5")
Extension 250 mm (10")
Universal Joint
• 3 Socket Adaptors:
1/4 Male x 3/8" Female Adaptor
3/8 Female x 1/2" Male Adaptor
1/2" Female x 3/8" Male Adaptor
• 2 Spark Plug Sockets:
16mm (5/8) x 3/8" Square Drive
21mm (13/16) x 1/2" Square Drive
EVA Size - 547mm x 400mm x 30mm
DRAWER 1 - EVA103T - EVA Tray 36 Piece EVOLVE® Hex & TORX® Key
• Ball Point Hex Key Set Long Series 9 Piece Imperial
1/16" x 14 x 90mm, 3/16" x 28 x 160mm, 5/64" x 16 x 100mm, 1/4" x 32 x 180mm, 3/32" x 18 x 112mm, 5/16" x 36 x 200mm, 1/8" x 20 x 126mm, 3/8" x 40 x 224mm, 5/32" x 25 x 140mm
• Ball Point Hex Key Set Long Series 9 Piece Metric
1.5 x 14 x 90mm, 5.0 x 28 x 160mm, 2.0 x 16 x 100mm, 6.0 x 32 x 180mm, 2.5 x 18 x 112mm, 8.0 x 36 x 200mm, 3.0 x 20 x 126mm, 10.0 x 40 x 224mm, 4.0 x 25 x 140mm
• Tamperproof TORX® Set Long Series 9 Piece
T10H x 14 x 90mm, T30H x 28 x 160mm, T15H x 16 x 100mm, T40H x 32x 180mm, T20H x 18 x 112mm, T45H x 36 x 200mm, T25H x 20 x 126mm, T50H x 40 x 224mm, T27H x 25 x 140mm
• TORX® Set Long Series 9 Piece
T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm
EVA Size - 160mm x 355mm x30mm
DRAWER 2 - EVA102T - EVA Tray 3 Piece EVOLVE® 200mm File Set
• Hand File Bastard Cut 8" (200mm)
• Half Round Bastard Cut 8" (200mm)
• Round File Bastard Cut 8" (200mm)
EVA Size - 160mm x 355mm x 30mm
DRAWER 3 - EVA101T - EVA Tray 4 Piece EVOLVE® Pliers & Cutter
• Combination Pliers 200mm (8")
• Diagonal Cutting Pliers 200mm (8")
• Long Nose Pliers 200mm (8")
• Multi-Grip Pliers 250mm (10")
EVA Size - 160mm x 355mm x 30mm

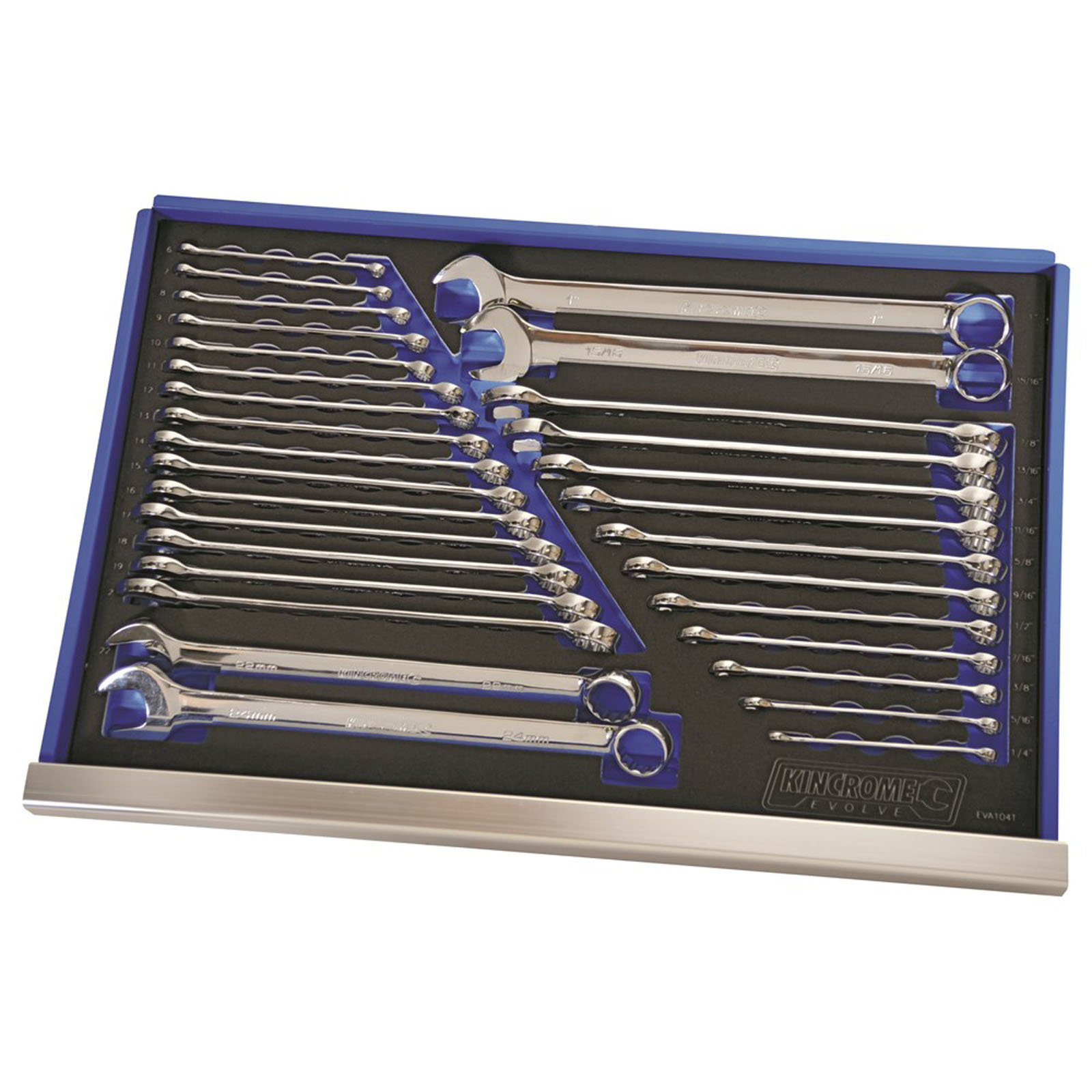

DRAWER 4 - EVA104T - EVA Tray 30 Piece EVOLVE® Combination Spanner - Mirror Polish
• 17 Metric Combination Spanners:
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
• 13 Imperial Combination Spanners:
1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"
EVA Size - 552mm x 355mm x 30mm
DRAWER 5
• Tamperproof TORX® Set on Rail 11 Piece 1/4" & 3/8" Square Drive
1/4" Square Drive: T-10, T-15, T-20, T-25, T-27, T-30,
3/8" Square Drive: T-40, T-45, T-50, T-55, T-60
• TORX® Socket Set on Rail 11 Piece 1/4" & 3/8" Square Drive
1/4" Square Drive: T-10, T-15, T-20, T-25, T-27, T-30
3/8" Square Drive: T-40, T-45, T-50, T-55, T-60
• Adjustable Wrench 200mm (8")
• Adjustable Wrench 300mm (12")
• Folding Utility Knife (with 10 Spare Blades)
• 8 Metre Metric Tape Measure
• Heavy Duty Hacksaw 300mm (12")
• Ball Pein Hammer Hickory Shaft 16oz (454gm)
• Locking Pliers Curved Jaw 250mm (10")
DRAWER 6
• 13 Piece TORQUEMASTER® Screwdriver Set
8 Screwdrivers - Blade:
3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 100mm, 8mm x 150mm, 6mm x 38mm, 9.5mm x 250mm
5 Screwdrivers - Phillips:
No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm, No.3 x 150mm
• Magnetic Bit Driver
• Security Bit & Holder Set 33 Piece 1/4" Hex Drive
• Precision Screwdriver Set 6 Piece
Blade:1.4mm, 2.0mm, 2.4mm, 3.0mm
Phillips: No.0, No.1
DRAWER 7
• 3 Piece Wire Brush Set (Small)
Nylon, Brass & Stainless Steel
• 3 Piece Wire Brush Set (Large)
Steel, Brass & Stainless Steel
• Pry Bar Set 4 Piece
Blade Lengths:190mm, 285mm, 450mm, 600mm
TOOL KIT MEASUREMENTS:
• 7 Drawer Kincrome EVOLVE® Tool Chest
666mm x 410mm x 475mm - 33.5kg (empty)
• 6 Drawer Kincrome EVOLVE® Tool Trolley
672mm x 466mm x 963mm - 48kg (empty)
