CONTOUR®
The Leading Edge In Tool Kits & Storage

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide. CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

Payment Plan – Buy Now, Pay Later!*
* Minimum purchase value $1,000

Specifications

Brand	KINCROME
12 Month Protection Plan	Yes
Automatic Drawer Retention System (ADRS)	Yes
Castor Size	125mm x 50mm
Castor Type	Heavy Duty PU Castors (2x Locking)
Deep Sockets	Yes
Drawer Load Rating	Chest - 30kg (Per Drawer), Trolley - 30kg (Per Drawer)
Drawer Measurements	546 x 397 x 96mm (Chest - Large Deep) 867 x 397 x 65mm (Trolley - Top) 545 x 397 x 85mm (Trolley - Large Deep) 890 x 460 x 118mm (Chest - Top Tray) 258 x 397 x 41mm (Chest - Small Shallow) 257 x 397 x 52mm (Trolley - Small Shallow) 258 x 397 x 96mm (Chest - Small Deep) 545 x 397 x 52mm (Trolley - Large Shallow) 257 x 397 x 160mm (Trolley - Small Deep) 175 x 300 x 12mm (Trolley - Side Tray)
Drawer Slides Type	Chest - 35mm Ball Bearing, Trolley - 45mm Ball Bearing
Drive	1/2", 1/4", 3/8"
Extra Wide	Yes
Finish	UV Stabilised Powder Coat
Folding Trays	Yes
Gear Spanners	Yes
Impact Sockets Accessories	Yes
Lid Support	Gas Struts
Lockable	Yes
LOK-ON Sockets Accessories	Yes
Measurement System	Metric & Imperial
Measurements	1059 x 475 x 1434mm
Number Of Drawer Liners	23
Number Of Drawers	22
Number Of EVA Trays	10
Pieces	546
Power Board	Yes
Range	CONTOUR
Tool Chest Measurements	1059 x 475 x 484mm
Tool Chest Weight	64kg (Empty)
Tool Trolley Weight	85kg (Empty)
Warranty	Lifetime Guarantee
Wide	Yes
Work Surface	MDF
Colour	Black
Material	Various Materials
Size	42"
Length (mm)	1059
Width (mm)	475
Height (mm)	1434

Features

Product Contents

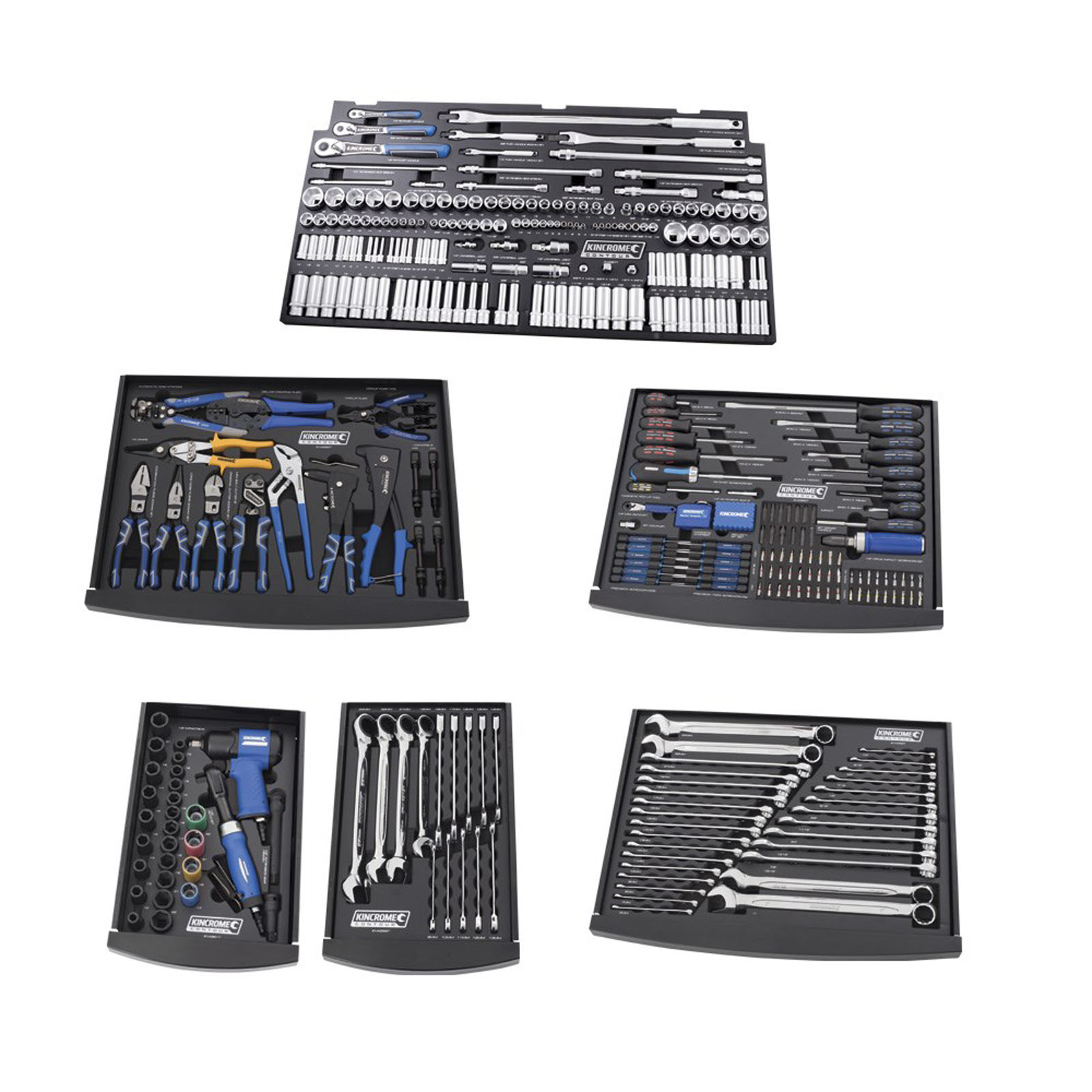

TOP TRAY - EVA557T - 163 Piece LOK-ON™ Sockets & Accessories EVA Tray

Metric Sockets

• 10 LOK-ON™ Sockets 1/4” Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm

• 12 LOK-ON™ Sockets 3/8” Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm

• 19 LOK-ON™ Sockets 1/2” Square Drive: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 32mm

• 11 LOK-ON™ Deep Sockets 1/4” Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm

• 12 LOK-ON™ Deep Sockets 3/8” Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm

• 15 LOK-ON™ Deep Sockets 1/2” Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

Imperial Sockets

• 9 LOK-ON™ Sockets 1/4” Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2”

• 7 LOK-ON™ Sockets 3/8” Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4”

• 15 LOK-ON™ Sockets 1/2”Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4”

• 8 LOK-ON™ Deep Sockets 1/4” Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 3/8, 7/16, 1/2”

• 8 LOK-ON™ Deep Sockets 3/8” Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16”

• 10 LOK-ON™ Deep Sockets 1/2” Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16”

26 LOK-ON™ Socket Accessories:

1/4” Square Drive

• LOK-ON™ Reversible Ratchet Handle

• LOK-ON™ Flex Handle 150mm (6”)

• LOK-ON™ Universal Joint

• LOK-ON™ Extension Bar 65mm

• LOK-ON™ Extension Bar 165mm

• LOK-ON™ Extension Bar 265mm

3/8” Square Drive

• LOK-ON™ Reversible Ratchet Handle

• LOK-ON™ Flex Handle 200mm (8”)

• LOK-ON™ Universal Joint

• LOK-ON™ Extension Bar 70mm

• LOK-ON™ Extension Bar 175mm

• LOK-ON™ Extension Bar 275mm

• LOK-ON™ Socket Adaptor 3/8” Female x 1/4” Male

• LOK-ON™ Socket Adaptor 3/8” Female x 1/2” Male

• Spark Plug Socket 14mm (9/16")

• Spark Plug Socket 16mm (5/8")

• Spark Plug Socket 21mm (13/16")

1/2” Square Drive

• LOK-ON™ Ratchet Handle Reversible Male

• LOK-ON™ Flex Handle 375mm

• LOK-ON™ Flex Handle 600mm

• LOK-ON™ Universal Joint

• LOK-ON™ Extension Bar 95mm

• LOK-ON™ Extension Bar 155mm

• LOK-ON™ Extension Bar 280mm

• LOK-ON™ Extension Bar 405mm

• LOK-ON™ Socket Adaptor 1/2” Female x 3/8” Male

DRAWER 1 - EVA558T - 30 Piece Combination Spanners EVA Tray

Metric Spanners

• 17 Combination Spanners: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24

Imperial Spanners

• 13 Combination Spanners: 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1

DRAWER 2 - EVA559T - 14 Piece Gear Spanners EVA Tray

Metric Spanners

• 14 Single Way Gear Spanners: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

DRAWER 3 - EVA560T - 131 Piece TorqueMaster® Screwdrivers & Fastening EVA Tray

• 8 TorqueMaster® Blade Screwdrivers:

o 3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 100mm, 8mm x 150mm, 6mm x 38mm, 9.5mm x 250mm

• 5 TorqueMaster® Phillips Screwdrivers:

o No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm, No.3 x 150mm

• 33 Piece Security Bit & Holder Set

o 1/4"(F) x 1/4"(M) Magnetic bit holder

o 3 MORTORQ® Bits: #6, #8 & #10mm

o 4 Spanner Bits: 4, 6, 8 & 10mm

o 4 Tri-wing Bits: 1, 2, 3 & 4

o 6 Hexagonal Security Bits: 2, 2.5, 3, 4, 5 & 6mm

o 6 Hexagonal Security Bits: 5/32, 9/64, 1/8, 7/64, 3/32 & 5/64"

o 9 Tamperproof TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T35 & T40

• 14 Piece Impact Screwdriver Set:

o Impact Screwdriver

o Phillips: No.1, 2, 3, 4
o Hex: 4, 5, 6, 8mm
o Blade: 5, 6, 8, 10, 12mm

• 9 Piece Ratcheting Screwdriver Set

o Ratcheting Screwdriver Handle (with internal bit storage)
o Phillips: No 1, No2
o Blade: 4mm, 6mm
o Hex: 3mm, 5mm
o 2 Interchangeable Bit Drivers: 50mm, 153mm

• 6 Piece Precision TORX® Screwdriver Set:

o T5, T6, T7, T8, T9, T10

• 6 Piece Precision Screwdriver Set:

o Blade: 1.4mm, 2.0mm, 2.4mm, 3.0mm

o Phillips: No.0, No.1

• 9 Piece Screwdriver Bit Set (Phillips)
• 9 Piece Screwdriver Bit Set (Hex)
• 9 Piece Screwdriver Bit Set (Tamperproof TORX®)
• 9 Piece Screwdriver Bit Set (TORX®)
• 9 Piece Screwdriver Bit Set (Blade)

• Bit Holder Coupler 1/4” Drive x 1/4 Hex
• 1/4” Mini Ratchet
• TorqueMaster® Magnetic Telescopic Pick-up Tool

• TorqueMaster® Bit holder Driver 6mm Hex Drive

• TorqueMaster® Magnetiser & Demagnetiser

DRAWER 4 - EVA561T - 27 Piece Impact Sockets & Accessories EVA Tray

Metric Sockets

• 12 Impact Sockets 1/2” Square Drive: 10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

• 9 Deep Impact Sockets 1/2” Square Drive: 10, 12, 13, 14, 15, 16, 17, 19, 21mm

• 4 Wheel Nut Super Impact Sockets 1/2” Square Drive: 17, 19, 21, 22mm

• Impact Extension Bar 75mm
• Impact Extension Bar 150mm

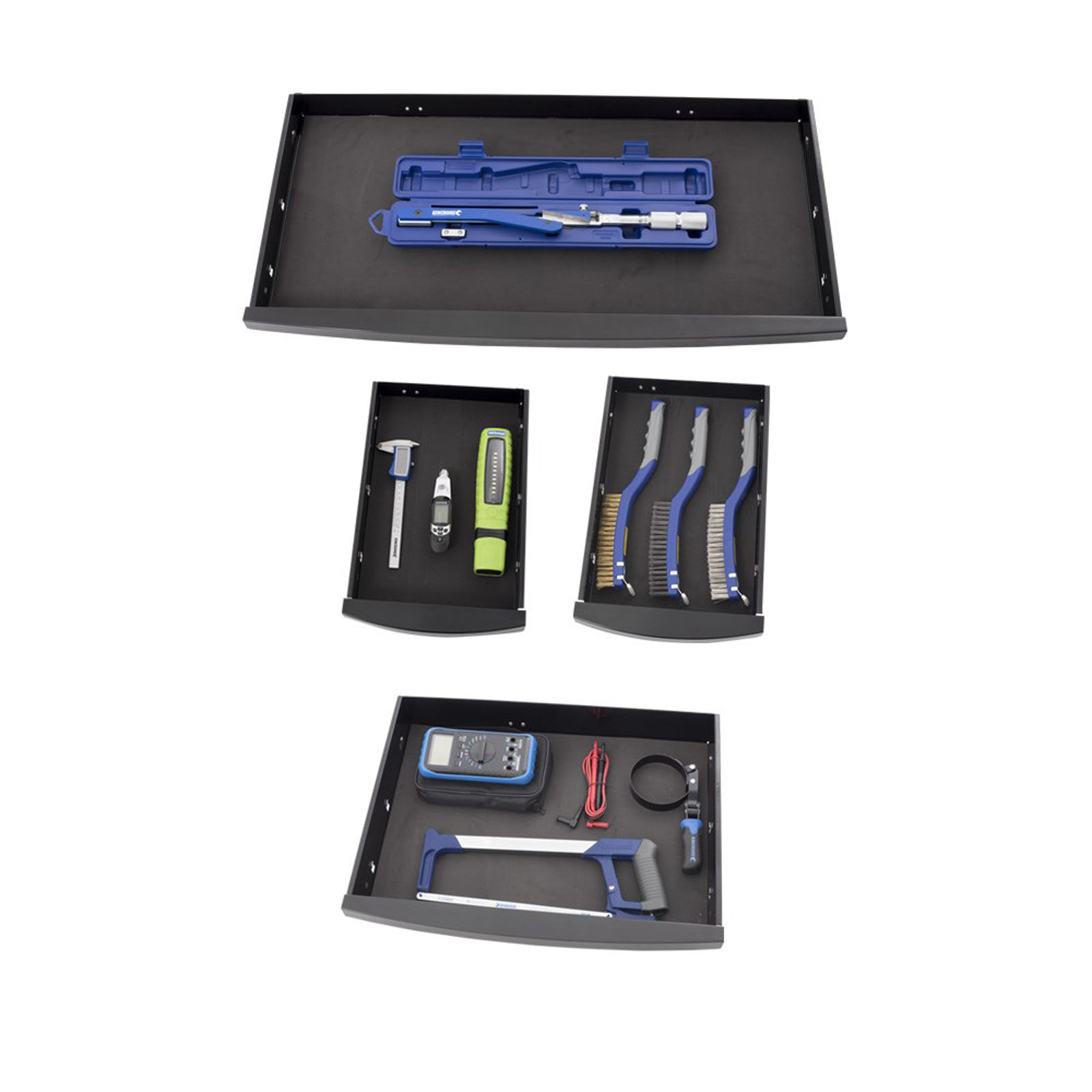

DRAWER 5

• 1/2” Deflection Beam Torque Wrench

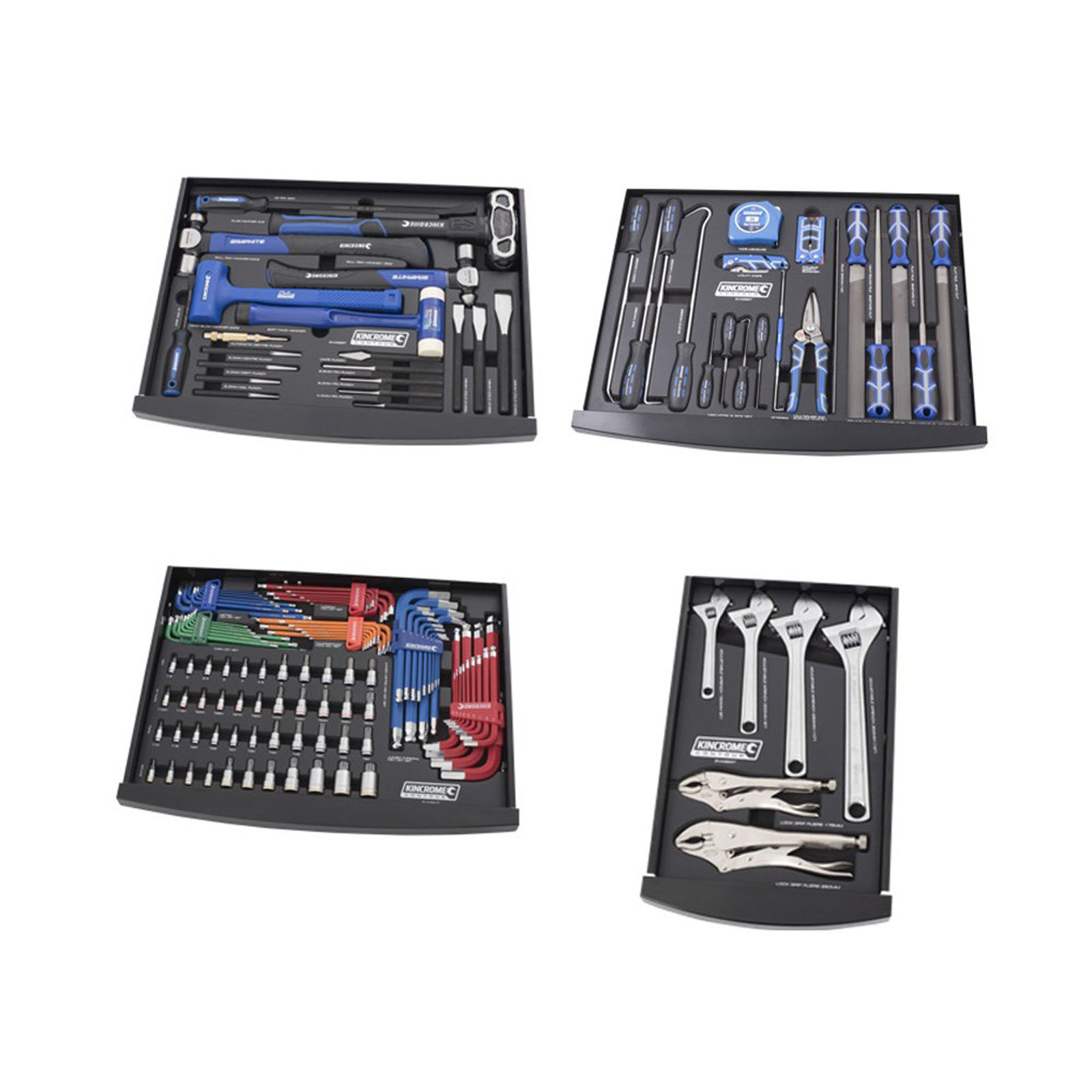

DRAWER 6 - EVA565T - 19 Piece Cut, Scrape & Measure EVA Tray

• 5 Piece File Set:

o Flat File Bastard Cut

o Half Round File Bastard Cut

o Flat File 2nd Cut

o Square File Bastard Cut

o Round File Bastard Cut

• 4 Piece Large Hook & Pick Set:

o AWL 260mm

o Pin Remover 260mm

o L hook 260mm

o V hook 260mm

• 4 Piece Mini Hook & Pick Set:

o AWL 129mm

o Pin Remover 115mm

o L hook 115mm

o V hook 125mm

• 8m Metric Tape Measure
• Stainless Steel Ruler 300mm (12”)
• Folding Utility Knife
• Folding Scraper
• Multipurpose Industrial Scissors
• Scriber 235mm

DRAWER 7 - EVA563T - 6 Piece Pliers & Wrenches EVA Tray

• Adjustable Wrench 150mm (6”)

• Adjustable Wrench 200mm (8”)

• Adjustable Wrench 250mm (10”)

• Adjustable Wrench 300mm (12”)

• Locking Grip Pliers 175mm (7”)

• Locking Grip Pliers 250mm (10”)

DRAWER 8 - EVA562T - 15 Piece Pliers & Riveters EVA Tray

• X-Force Combination Pliers 200mm (8”)
• X-Force Diagonal Cutting Pliers 200mm (8”)
• X-Force Long Nose Pliers 200mm (8”)
• Multi-Grip Pliers 250mm (10”)
• Mini Bolt Cutter 200mm
• Compact Hand Riveter
• Nut Riveter
• Automatic Wire Stripper
• Deluxe Crimping Wire
• Straight Cut Tin Snips

• 5 Piece Combination Circlip Pliers Set:

o Combination Circlip Plier (internal/external)

o Straight

o 90°

o 45°

o Flag Tip

DRAWER 9

• 3 Piece Wire Brush Set:

o Stainless Steel, Brass, Steel

DRAWER 10 - EVA564T - 106 Piece Hex / TORX® Keys & Sockets EVA Tray

• 9 Piece Metric Ball Point Long Series Hex Key Set:
o 1.5 x 14 x 90mm, 2.0 x 16 x 100mm, 2.5 x 18 x 112mm, 3.0 x 20 x 126mm, 4.0 x 25 x 140mm, 5.0 x 28 x 160mm, 6.0 x 32 x 180mm, 8.0 x 36 x 200mm, 10.0 x 40 x 224mm

• 9 Piece Imperial Ball Point Long Series Hex Key Set:
o 1/16” x 14 x 90mm, 5/64” x 16 x 100mm, 3/32” x 18 x 112mm, 1/8” x 20 x 126mm, 5/32” x 25 x 140mm, 3/16” x 28 x 160mm, 1/4” x 32 x 180mm,

5/16” x 36 x 200mm, 3/8” x 40 x 224mm

• 9 Piece TORX® Long Series Hex Key Set:

o T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm,

T45 x 44 x 210mm, T50 x 50 x 235mm

• 9 Piece Tamperproof TORX® Long Series Hex Key Set:
o T10H x 14 x 90mm, T15H x 16 x 100mm, T20H x 18 x 112mm, T25H x 20 x 126mm, T27H x 25 x 140mm, T30H x 28 x 160mm, T40H x 32x 180mm,

T45H x 36 x 200mm, T50H x 40 x 224mm

• 13 Piece Metric Ball Point Jumbo Key Wrench Set:

o 2, 2.5, 3, 4, 5, 6, 7, 8, 10, 12, 14, 17, 19mm

• 13 Piece Imperial Ball Point Jumbo Key Wrench Set:

o 5/64, 3/32, 1/8, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8, 1/2, 9/16, 5/8, 3/4”

• 11 Piece Metric Hex Socket Set:

o 1.5, 2, 2.5, 3, 4, 4.5, 5, 6, 8, 10, 12mm

• 11 Piece Tamperproof TORX® Socket Set:

o T10H, T15H, T20H, T25H, T27H, T30H, T40H, T45H, T50H, T55H, T60H

• 11 Piece TORX® Socket Set:

o T10, T15, T20, T25, T27, T30, T40, T45, T50, T55, T60

• 11 Piece Spline Socket Set:

o M4, M5, M6, M8, M8, M10, M12, M12, M14, M16, M18

DRAWER 11

• Digital Vernier Caliper 150mm (6”)

• SMD LED Inspection Light Hi-Vis

• Smart Tyre Gauge

DRAWER 12 - EVA566T - 20 Piece Striking & Prying EVA Tray

• 2 Piece Pry Bar Set:
o Extended Bent Pry Bar 450mm (18”)
o Bent Pry Bar 200mm (8”)

• 12 Piece Punch & Chisel Set:
o 3 Cold Chisels: 16, 19 & 25mm
o 4 Pin Punches: 2.5, 4, 5 & 6.5mm
o 1 Centre Punch: 5mm
o 1 Drift Punch: 5mm
o 2 Nail Punch: 2.5 & 5mm
o 1 Cape Punch

• Ball Pein Hammer 16oz
• Ball Pein Hammer 24oz
• Ironkore 4lb Club Hammer
• Dead Blow Hammer 24oz
• Soft Face Hammer 38mm

• Automatic Centre Punch

DRAWER 13

• Digital Multimeter

• Hacksaw 300mm (12”)

• Oil Filter Wrench 87-85mm

TOOL STORAGE

• CONTOUR® Tool Chest 10 Drawer 42" Black Series - K7540

• CONTOUR® Tool Trolley 12 Drawer 42" Black Series - K7542

Tool Kits

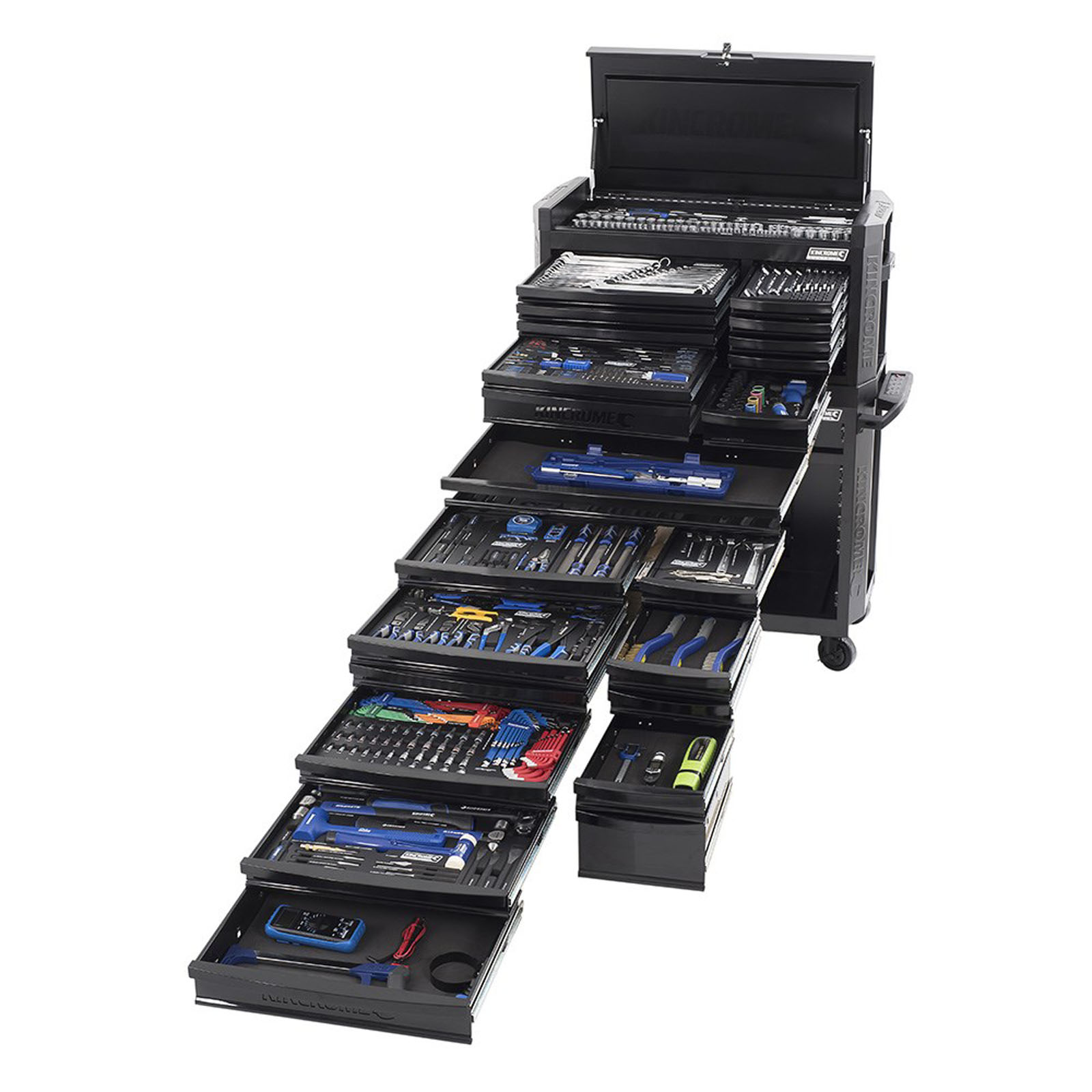

CONTOUR® Workshop Tool Kit 546 Piece 22 Drawer 42" Black
