CONTOUR®
The Leading Edge In Tool Kits & Storage

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide. CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

Payment Plan – Buy Now, Pay Later!*
* Minimum purchase value $1,000

Specifications

Brand	KINCROME
12 Month Protection Plan	Yes
Automatic Drawer Retention System (ADRS)	Yes
Castor Size	5" x 2" (125mm x 50mm)
Castor Type	Heavy Duty PU Castors (2x Locking)
Drawer Load Rating	Chest - 30kg (Per Drawer), Trolley - 30kg (Per Drawer)
Drawer Measurements	540 x 395 x 40mm (Chest - Large) 540 x 395 x 95mm (Trolley - Large) 540 x 395 x 50mm (Trolley - Small) 574 x 460 x 110mm (Chest - Top Tray) 160 x 397 x 41mm (Chest - Small Shallow)
Drawer Slides Type	Chest - 35mm Ball Bearing, Trolley - 45mm Ball Bearing
Drive	1/2", 1/4", 3/8"
Extra Depth	Yes
Folding Trays	Yes
Gear Spanners	Yes
Lid Support	Gas Struts
Lockable	Yes
Measurement System	Metric & Imperial
Measurements	745 x 475 x 1425mm
Number Of Drawer Liners	16
Number Of Drawers	15
Number Of EVA Trays	8
Pieces	472
Power Board	Yes
Range	TorqueMaster, CONTOUR
Shelf Load Rating	15kg (Per Shelf)
Tool Chest Measurements	745 x 475 x 485mm
Tool Chest Weight	41kg (Empty)
Tool Trolley Weight	60kg (Empty)
Warranty	Lifetime Guarantee
Work Surface	MDF
Material	Various Materials
Size	29"
Length (mm)	745
Width (mm)	475
Height (mm)	1425

Product Contents

TOP TRAY - EVA60T - 89 Piece Sockets & Accessories EVA Tray

Metric Sockets

• 9 Sockets 1/4" Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12mm

• 10 Sockets 3/8" Square Drive: 9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm

• 19 Sockets 1/2" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 30, 32mm

Imperial Sockets

• 9 Sockets 1/4" Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"

• 7 Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"

• 15 Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1.1/16, 1.1/8, 1.3/16, 1.1/4"

13 Socket Accessories

1/4" Square Drive

• Reversible Ratchet Handle

• Spinner Handle 150mm (6")

• Extension Bar 150mm (6")

• Socket Adaptor 1/4" Male x 3/8" Female

3/8" Square Drive

• Reversible Ratchet Handle

• Extension Bar 75mm (3")

• Extension Bar 150mm (6")

• Socket Adaptor 3/8" Female x 1/2" Male

• Spark Plug Socket 16mm (5/8")

1/2" Square Drive

• Reversible Ratchet Handle

• Flex Handle 375mm (15")

• Sliding T-Handle 250mm (10")

• Universal Joint

• Extension Bar 125mm (5")

• Extension Bar 250mm (10")

• Socket Adaptor 1/2" Female x 3/8" Male

• Spark Plug Socket 21mm (13/16")

DRAWER 1 - EVA63T - CONTOUR® 4 Piece Pliers & Cutter EVA Tray

• Combination Pliers 200mm (8")

• Diagonal Cutting Pliers 200mm (8")

• Long Nose Pliers 200mm (8")

• Multi-Grip Pliers 250mm (10")

DRAWER 2 - EVA61T - 36 Piece Hex & TORX® Key EVA Tray

• 9 Piece Metric Ball Point Long Series Hex Key Set:
o 1.5 x 14 x 90mm, 2.0 x 16 x 100mm, 2.5 x 18 x 112mm, 3.0 x 20 x 126mm, 4.0 x 25 x 140mm, 5.0 x 28 x 160mm, 6.0 x 32 x 180mm, 8.0 x 36 x 200mm,

10.0 x 40 x 224mm

• 9 Piece Imperial Ball Point Long Series Hex Key Set:
o 1/16" x 14 x 90mm, 5/64" x 16 x 100mm, 3/32" x 18 x 112mm, 1/8" x 20 x 126mm, 5/32" x 25 x 140mm, 3/16" x 28 x 160mm, 1/4" x 32 x 180mm,

5/16" x 36 x 200mm, 3/8" x 40 x 224mm

• 9 Piece Tamperproof TORX® Long Series Key Set:
o T10H x 14 x 90mm, T15H x 16 x 100mm, T20H x 18 x 112mm, T25H x 20 x 126mm, T27H x 25 x 140mm, T30H x 28 x 160mm, T40H x 32x 180mm,

T45H x 36 x 200mm, T50H x 40 x 224mm

• 9 Piece TORX® Long Series Key Set:
o T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm,

T45 x 44 x 210mm, T50 x 50 x 235mm

DRAWER 3 - EVA62T - 5 Piece Scrape EVA Tray

• Hand File Bastard Cut 250mm (10")

• Hand File 2nd Cut 250mm (10")

• Half Round File Bastard Cut 250mm (10")

• Square File Bastard Cut 250mm (10")

• Round File Bastard Cut 250mm (10")

DRAWER 4 - EVA64T - 30 Piece Combination Spanners EVA Tray

Metric Spanners

• 17 Combination Spanners: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

Imperial Spanners

• 13 Combination Spanners: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"

DRAWER 5 - EVA66T - 72 Piece TorqueMaster® Screwdrivers & Fastening EVA Tray

• 8 TorqueMaster® Blade Screwdrivers:

o 3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 100mm, 8mm x 150mm, 6mm x 38mm, 9.5mm x 250mm

• 5 TorqueMaster® Phillips Screwdrivers:

o No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm, No.3 x 150mm

• 14 Piece Impact Screwdriver Set:

o 1/2" Drive Impact Screwdriver

o 4 Phillips Impact Bits: No. 1, 2, 3, 4

o 5 Blade Impact Bits: 5, 6, 8, 10, 12mm

o 4 Hex Impact Bits: 4, 5, 6, 8mm

• 33 Piece Security Bit & Holder Set:

o 1/4"(F) x 1/4"(M) Magnetic Bit Holder

o 3 MORTORQ® Bits: #6, 8, 10

o 4 Spanner Bits: 4, 6, 8, 10mm

o 4 Tri-wing Bits: 1, 2, 3, 4

o 6 Hexagonal Security Bits: 2, 2.5, 3, 4, 5, 6mm

o 6 Hexagonal Security Bits: 5/32, 9/64, 1/8, 7/64, 3/32, 5/64"

o 9 Tamperproof TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T35, T40

• 6 Piece Precision Screwdriver Set:

o Blade: 1.4mm, 2.0mm, 2.4mm, 3.0mm

o Phillips: No.0, No.1

• TorqueMaster® Magnetic Bit Driver

• TorqueMaster® Magnetiser & Demagnetiser

• TorqueMaster® Magnetic Telescopic Pick-up Tool

DRAWER 6 - EVA67T - 13 Piece Pliers & Wrenches EVA Tray

• Locking Pliers Curved Jaw 250mm (10")

• Hand Riveter 250mm (10")

• Tin Snip Pliers Straight Cut 260mm (10")

• Automatic Wire Stripper with Crimper

• Adjustable Wrench 150mm (6")

• Adjustable Wrench 200mm (8")

• Adjustable Wrench 250mm (10")

• Adjustable Wrench 300mm (12")

• 5 Piece Combination Circlip Pliers Set:

o Combination Circlip Plier (internal/external)

o Straight

o 90°

o 45°

o Flag Tip

DRAWER 7 - EVA65T - 43 Piece Gear Spanners & Go Through Sockets EVA Tray

Metric Spanners

• 12 Single Way Gear Spanners: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm

Imperial Spanners

• 8 Single Way Gear Spanners: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"

• 13 Piece "Go-Through" Flex Socket Set

o 9 Multi Drive Sockets: 10, 11, 12, 13, 14, 15, 16, 17, 19mm
o Flex Locking Reverse Go Through Ratchet Handle
o Go Through Extension 73mm (3")
o 2 Quick Release Adaptors: 3/8, 1/2"

• 10 Piece Mini Ratchet Set:
o 1 Ratchet Reversible
o 2 Blade Bits: 1/4", 3/16"
o 3 Phillips Bits: No1, No2, No3
o 4 TORX® Bits: T10, T15, T20, T25

DRAWER 8

• 128 Piece TorqueMaster® Master Bit & Driver Set:

o 1/4" Magnetic Hex Bit Driver

o 1/4" Flexible Hex Bit Driver

o Magnetiser & Demagnetiser

o 5 Phillips Bits: No.0, 1, 2, 3, 4

o 9 Blade Bits: 3, 4, 4.5, 5, 5.5, 6, 6.5, 7, 8mm

o 12 TORX® Bits: T6, 7, 8, 10, 15, 20, 25, 27, 30, 40, 45, 50

o 11 Tamperproof TORX® Bits: T6, 7, 8, 9, 10, 15, 20, 25, 27, 30, 40

o 5 TORX® Plus Bits: T15, 20, 25, 27, 30

o 10 Piece Metric Hex Bits: 1.5, 2, 2.5, 3, 4, 5, 5.5, 6, 8, 10mm

o 6 Tamperproof Metric Hex Bits: 2, 2.5, 3, 4, 5, 6mm

o 6 Metric Ball-Hex Bits: 2.5, 3, 4, 5, 5.5, 6mm

o 8 Imperial Hex Bits: 5/64, 3/32, 7/64, 1/8, 5/32, 3/16, 7/32, 1/4"

o 12 Tamperproof Imperial Hex Bits: 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 3/8"

o 5 Imperial Ball-Hex Bits: 1/8, 5/32, 3/16, 7/32, 1/4"

o 4 Pozi Bits: No.0, 1, 2, 3

o 3 Spline Bits: M5, 6, 8

o 3 Clutch Bits: 5/32, 3/16, 1/4"

o 4 Spanner Bits: 4, 6, 8, 10

o 4 Robertson Bits: S0, 1, 2, 3

o 4 Tri-Wing Bits: No.1, 2, 3, 4

o 3 Offset Phillips (Torq) Bits: No.6, 8, 10

o 3 Metric Nut Drivers: 6, 8, 10mm

o 3 Imperial Nut Drivers: 1/4, 5/16, 3/8"

o 1 Quick-Release Coupler

o 1 Hook Driver

o 1 Bit Adaptor

o 2 Nut Driver Adaptors

• 11 Piece TORX® Short Series Socket Set:

o 6 1/4" Square Drive: T10, T15, T20, T25, T27, T30

o 5 3/8" Square Drive: T40, T45, T50, T55, T60

• 11 Piece Tamperproof TORX® Short Series Socket Set:

o 6 1/4" Square Drive: T10H, T15H, T20H, T25H, T27H, T30H

o 5 3/8" Square Drive: T40H, T45H, T50H, T55H, T60H

• 5 Piece Screw Extractor Set:

o 3 - 6mm - 1/8" - 1/4"

o 6 - 8mm - 1/4" - 5/16"

o 8 - 11mm - 5/16" - 7/16"

o 11 - 14mm - 7/16" - 9/16"

o 14 - 18mm - 9/16" - 3/4"

• Folding Lock Back Utility Knife 150mm

• 10 Pack Spare Knife Blades

• Ball Pein Hammer Hickory Shaft 16oz (454gm)

DRAWER 9

• 3 Piece Wire Brush Set (Small)

o Nylon, Brass & Stainless Steel

• 3 Piece Wire Brush Set (Large)

o Nylon, Brass & Stainless Steel

• 12 Piece Punch & Chisel Set:

o 3 Cold Chisel: 16mm, 19mm, 25mm

o 4 Pin Punches: 2.5mm, 4.0mm, 5.0mm 6.5mm

o 1 Centre Punch: 5mm

o 1 Drift Punch: 5mm

• Hacksaw Heavy Duty

• XTENDA Tape Measure 8m

• Penlight Torch (AAA)

TOOL STORAGE

• CONTOUR® Tool Chest 8 Drawer 29" Green - K7747G

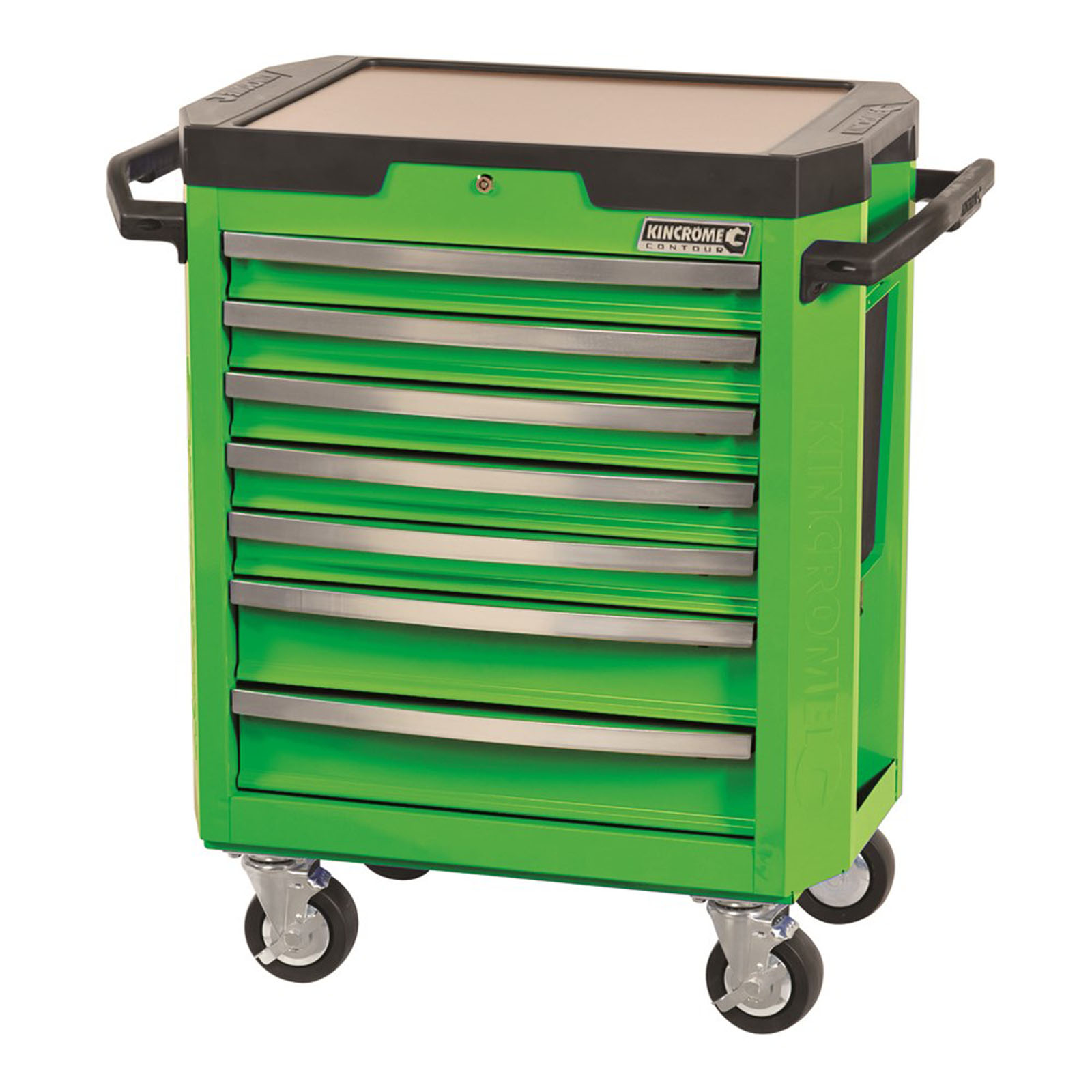

• CONTOUR® Tool Trolley 7 Drawer 29" Green - K7748G

Tool Kits

CONTOUR® Workshop Tool Kit 472 Piece 15 Drawer 29" Green
