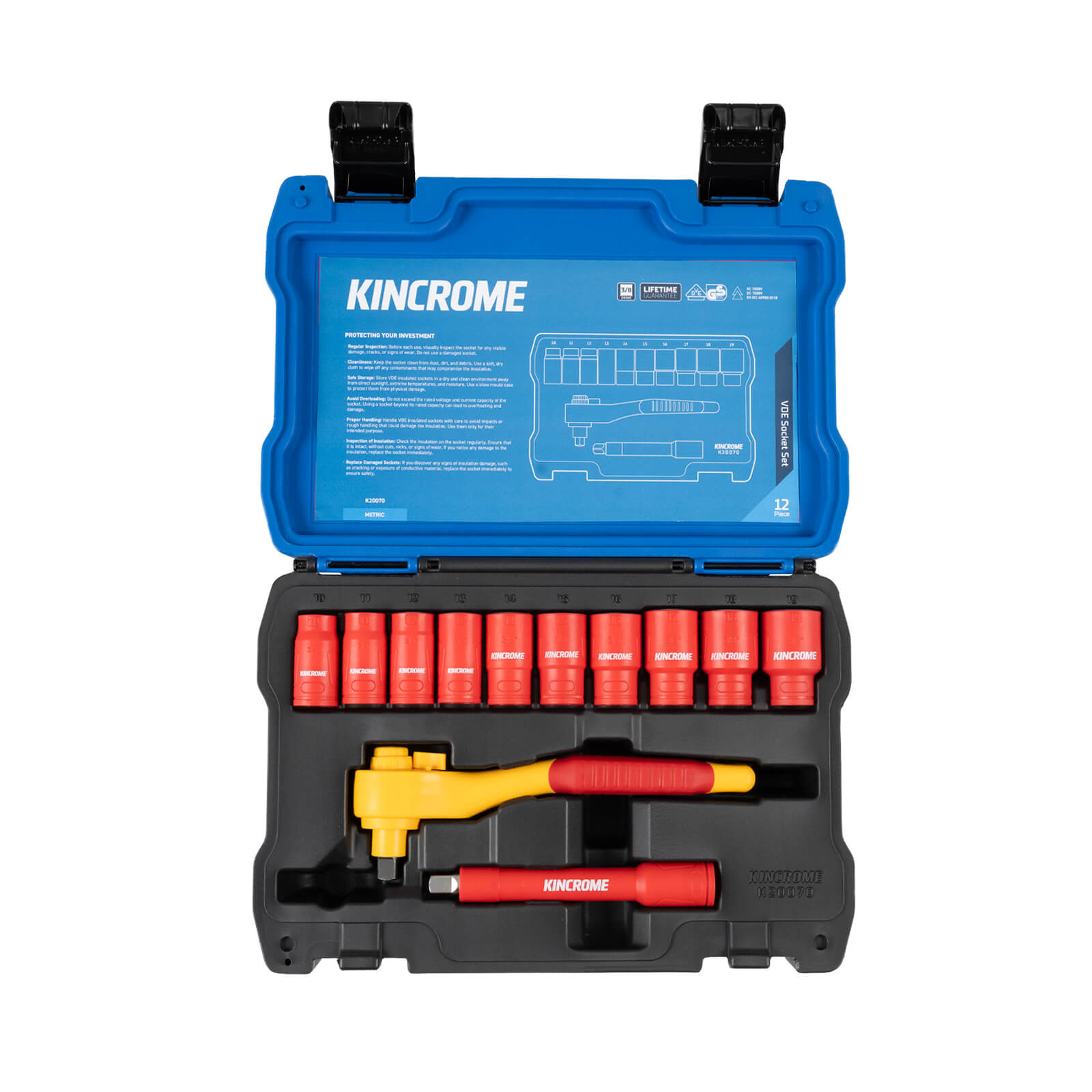

VDE Socket Set 12 Piece 3/8 Drive - Metric

Part No.
K20070
Barcode
9312753040396
Kincrome's line of VDE insulated sockets is meticulously engineered to ensure safe and efficient electrical work. These sockets are crafted from premium 50BV30 chrome vanadium steel, providing durability and reliability. They feature a precision-engineered 6-point design for maximum contact and a secure grip during use. Additionally, these sockets have undergone rigorous testing, with a 10,000V high-voltage test conducted by an internationally accredited institute, confirming compliance with the DIN EN IEC 60900:2018 standard. For added safety, Kincrome offers insulated ratchets, sockets, and extensions designed for secure work at permissible voltages of up to 1,000 volts. To facilitate organization and protection, these VDE insulated sockets come conveniently packaged in a sturdy blow mold case.

Maintenance Tips:

  1. Regular Inspection: Before use, visually check for damage, cracks, or wear, and avoid using damaged sockets.
  2. Cleanliness: Keep sockets clean from dust and debris with a soft, dry cloth to preserve insulation.
  3. Safe Storage: Store in a dry, clean place away from sunlight, extreme temperatures, and moisture. Use a protective blow mold case.
  4. Avoid Overloading: Stay within rated voltage and current limits to prevent overheating and damage.
  5. Inspection of Insulation: Regularly inspect insulation for cuts, nicks, or wear, replacing damaged sockets promptly.
  6. Proper Handling: Handle sockets carefully to prevent insulation damage, and use them only for their intended purpose.
  7. Replace Damaged Sockets: If you find insulation damage like cracking or exposed conductive material, replace the socket immediately for safety.

Specifications
Brand KINCROME
Drive 3/8"
Finish Insulated
Measurement System Metric
Pieces 12
Socket Sizes 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm
Standard DIN EN IEC 60900:2018
Warranty Kincrome Quality
Material Chrome Vanadium Steel (Cr-V)
Length (mm) 295
Width (mm) 208
Height (mm) 81
Weight (kg) 2
Features
Fully insulated VDE certified Sockets
Durable Construction: Made from Chrome Vanadium Steel for long-lasting performance and reliability
6-point socket design for greater contact surface between sockets and fasteners, locks force more firmly, reduces wear and rounding off at corners issues
Suitable for work use on industrial equipment, renewable energy systems, EV Vehicles / Charging stations & other high voltage equipment
Complete set for working on and around live power up to 1000V AC
Tested at 10,000V high voltage by an internationally accredited institute and proved to meet the DIN EN IEC 60900:2018 standard
